ExoFlow-ONE EV Labeling Kit for Flow Cytometry (Sapphire Blue)

Product Description

• Directly detect EVs by specifically labeling internal EV components
• Accurately estimate the size of labeled EVs
• Ensure proper run-to-run calibration with the included size standards
• Learn more from a single sample by multiplexing with our range of spectrally separated ExoFlow-ONE dyes
• Achieve near single-vesicle visualization* with our proprietary ExoFlow-ONE dyes that deliver
  > High quantum efficiency
  > Negligible background signal when not bound to EVs

Finally, you can take full advantage of the power of flow-based methods for analyzing extracellular vesicles (EVs) with SBI’s exclusive ExoFlow-ONE Gemstone dyes. By specifically labeling internal EV components with one of these proprietary, high quantum efficiency dyes, you can achieve near single-vesicle resolution* for more powerful flow cytometry and FACS studies, and uncover greater insights into EV biology.

The ExoFlow-ONE Sapphire Blue Gemstone Dye Kit comes with enough labeling reagents for 25 reactions**. Each kit also includes 1.5 mL of silica bead size standards (110 nm – 1300 nm), two of which are fluorescent. The silica beads, sourced from Apogee Flow Systems, are specifically designed to produce a refractive index and light scattering patterns similar to biological particles, enabling more accurate estimation of EV particle size.

*Requires a specialized flow cytometry imager capable of high-resolution vesicle analysis (e.g. Amnis® ImageStreamX Mark II, Apogee Micro-PLUS).
**Each reaction is defined as 1 µL of working dye combined with 200 – 500 µg of EV protein resuspended in 500 µL of buffer.

Choose the right ExoFlow-ONE dye for your project

Supporting Data

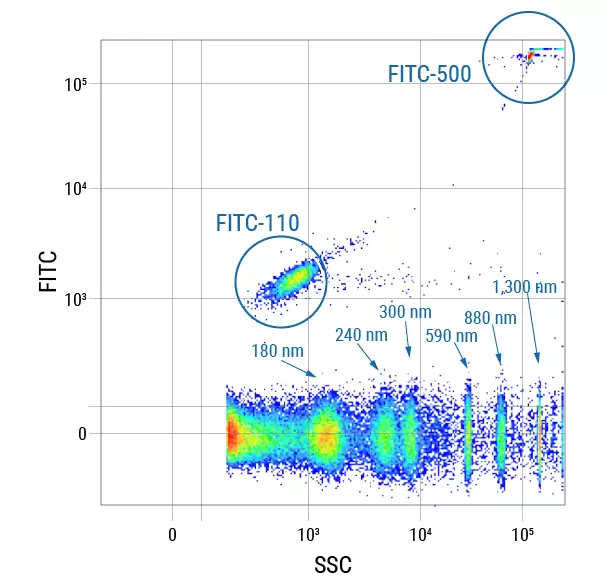

Figure 1. Get robust run-to-run- and size calibration with the included size standards. To demonstrate the robustness of the size standards included in every ExoFlow-ONE kit, we ran the standards on a BD® LSR II Flow Cytometer and plotted FITC vs SSC. The unlabeled and two fluorescently labeled size standards (110 nm and 500 nm) provide excellent coverage over the expected size ranges for EVs.
